Each SCHUBKRAFT motor is built for a specific type/application allowing for further refinement and efficacy/power to be optimized. Built using the highest quality components from 7075 T7 Aluminium, Japan bearings, n52h arc Magnets, .005g balancing, and then the design of each motor are also evaluated for their type application and everything from their mounting, to the prop type adapters are taken into consideration. He lower motor frame is chamfered for easy fitment on tighter frames and has plenty of height for mounting hardware to wingding clearance. The stators are made with 0.20mm Kawasaki silicon steel for maximum efficiency and minimum Eddy Current losses. Since these motors are typically soldered directly to the speed controller to save weight, the SCHUBKRAFT motors come without bullet connectors.
Features
• Japan bearings
• Hollow shaft
• n52h Arc Magnets
• 7075 T7 Aluminium
• .2mm laminations
• .005g balancing
• only ca. 23g without cables
• 3-4s Lipo
Specs
• Kv: 3000kv
• Magents: n52h Arc
• Bearing: high quality japanese
• Stator: 0,2 Kawasaki silicon steel
• No. of Cells (Lipo): 3~4S
• Prop Shaft Diameter: 5.00 mm
• Motor mount: M3, 16 / 19 mm
Included

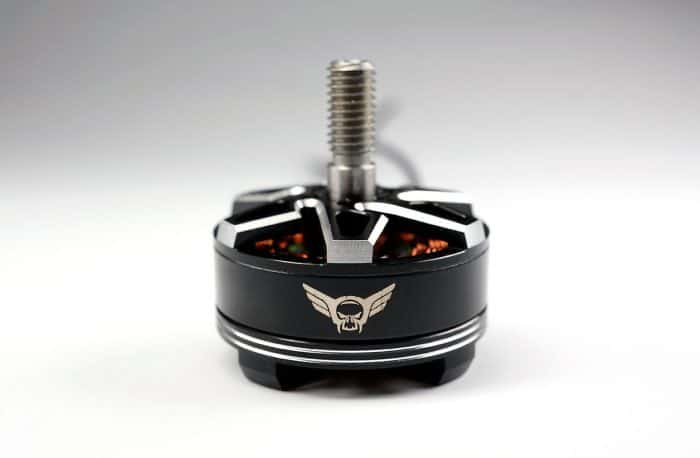

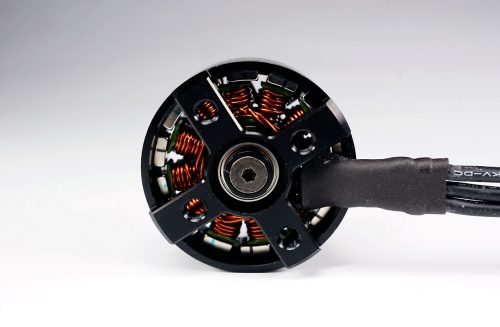

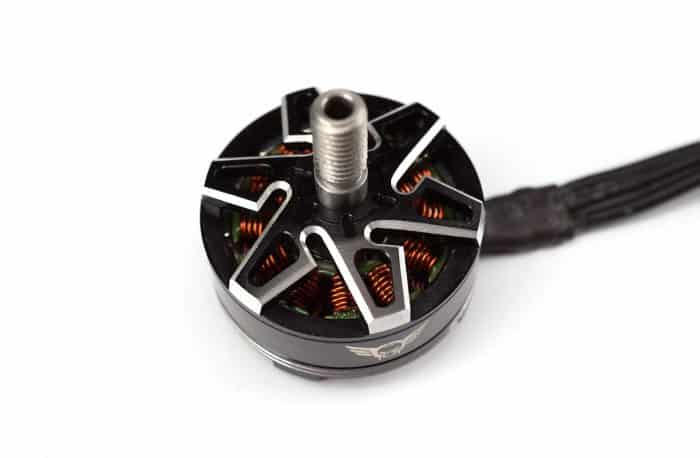

• 1x SCHUBKRAFT BLACK YETI 2204 3000kv Motor
• 4x M3 motor mount screws
• 1x Propeller mount nut M5
